Slide Copy Adapter unit for a digital camera

For your slides to digitalize.

I use a Canon Powershot A80, with a 4 megapixel.

With the macro you can com to 5 Cm from the lens.


I crop the picture from 2272 * 1704 back to 1302 * 868. This is for me a acceptable resolution.

To cropped and horizontally en vertically swap I use Irfanview.   http://www.irfanview.net/

Al slides are made with the flash. You need a light for focusing

The camera is attach to a external power supply, you don't have to change the battery.

500 slides in a proximally 1 hour.

I have now 4972 slides digital for to play on the PC and I have a backup.

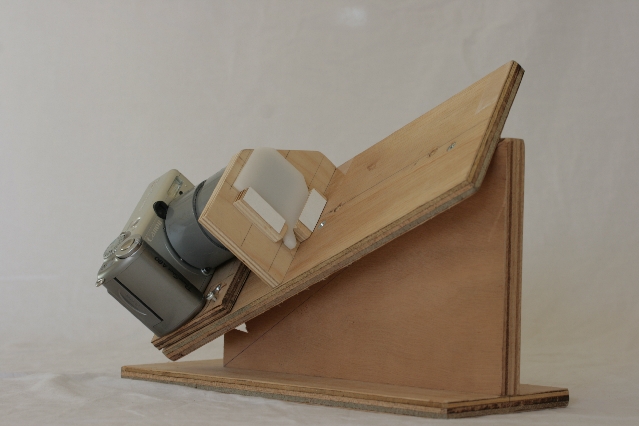

This angel is 45 degrees.

The PVC tube is glued with epoxy over the nails.

Paint it al  black on the inside.

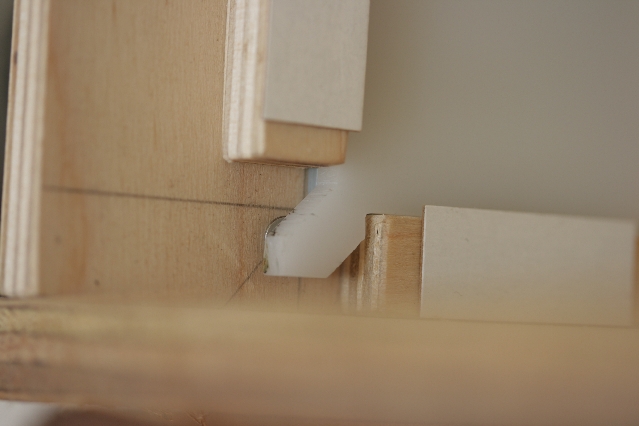

This is for leveling the camera with the slide. ( horizontally )

The round heads are for adjusting and the flat heads are for locking.

The round heads sitting only in the plate with the camera on it. And are flat on the under site.


This is made from white A4 paper.


More tips on  http://www.scantips.com/es-1.html
